RUD Conveyor Systems
Central Chains
Attachment MEZ-T Pocket Wheel
Chain Wheel For Bucket Elevator

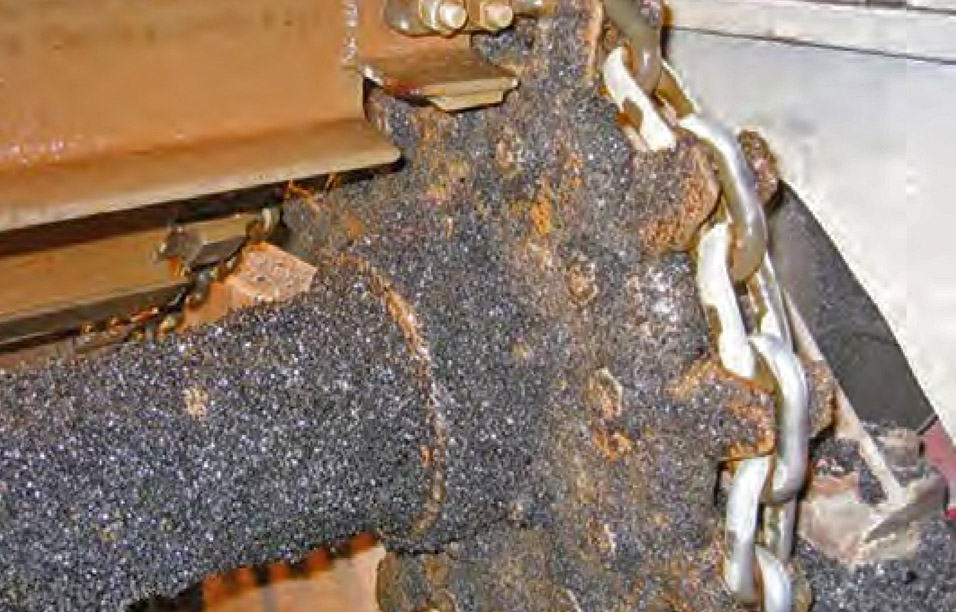

RUD Bucket Elevators and Ash Removal Systems
30% More Running Time.
RUD offers its customers nothing less than double the service life in the use of bucket elevators and ash removal systems – the new round steel chain R160 has been optimised with regard to a longer service life.
A specially alloged chain steel significantly improves the wear behaviour with the same breaking force. With a breaking stress from up to 400 N/mm² designed for particularly rough and heavy duty scenarios (e.g. de-ashers with high abrasive fly ash content in coal-fired power plants), it now doubles the standard operating life compared with other chain types and thus significantly increases the operating life cycle of the entire system.The R160 is currently available in the fol lowing sizes:
- 22 x 86mm
- 26 x 100mm
- 30 x 120mm
CHAIN CONNECTOR RSP Space Saving Chain Connectors
Properties include:
- For using in single and multi-strand conveyors
- For medium operating conditions
- Highly wear-resistant
- Installation dimension corresponding to chain link dimension
- Run over sprocket wheels, grooved wheels and flat wheels – vertical
- Run over pocket wheels vertical.
Scraper Bars
RUD scraper bars are always optimally adapted to the requirements and operating conditions specified to us by the customer.
We produce scraper bars as per the specifications of the customers, provided that no consultation or support is necessary.
Alternatively, we suggest an optimal scraper version based on an intensive consultation, which is developed in the dialogue.
Benefits of our systems include:
- Clear trough width of the conveyor as well as its exact
line profile - Trough bottom material and design
- Chain centre distance
- Maximum occurring / requested conveyance capacity
- Conveyance speed
- Properties of the material to be conveyed such as dampness, bulk density, angle of friction, particle size.
